How to Remove a Stuck or Broken Model T Head Stud

One of the topics that come up repeatedly on the T club forums is "How do I remove a broken head bolt".

A picture is worth a thousand words, so I took some for you:

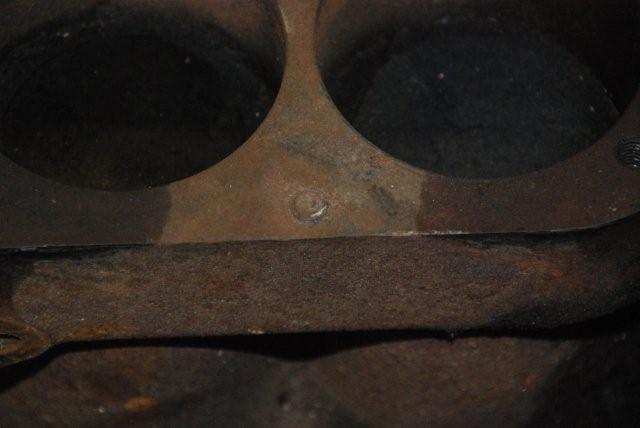

With the head removed, you can see the offending part.  This engine has obviously been sitting for a long long time, making the problem worse to deal with.  It looks like the previous owner gave up.

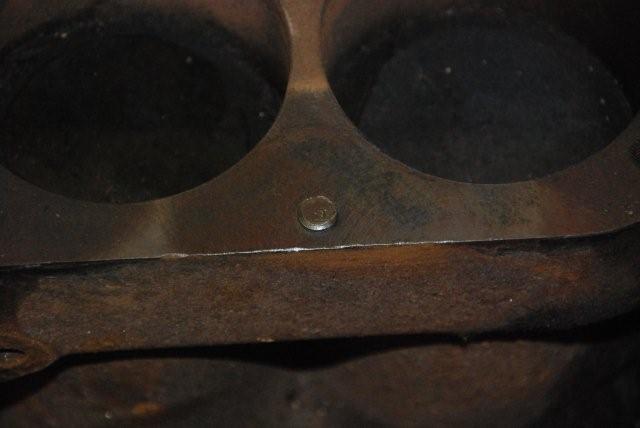

Clean with a wire brush

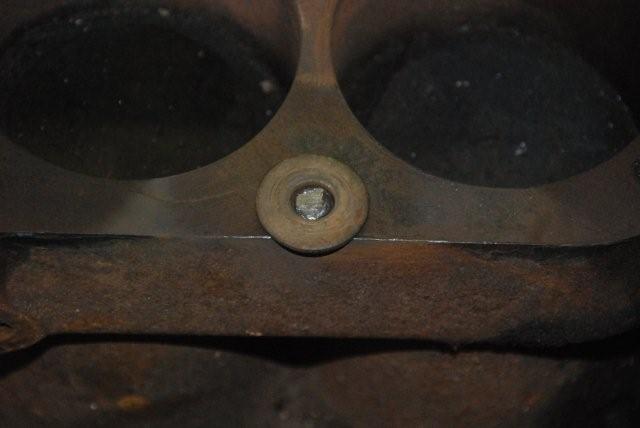

Lay a washer over the broken bolt.  This one is 1/2"

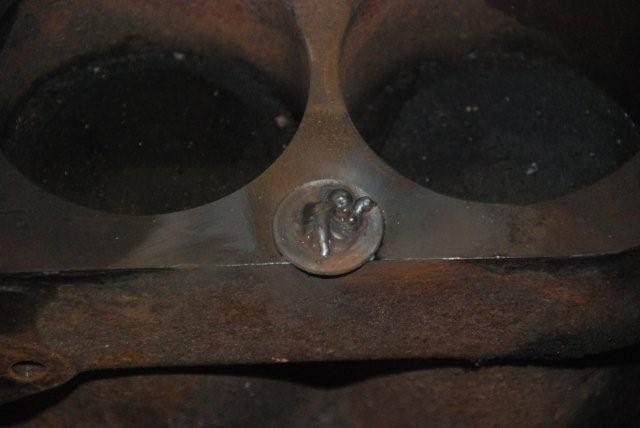

I chose to mig weld this, because it's quick and even an amateur like me can get decent results.  A stick welder, or even "brass and gas" will work.

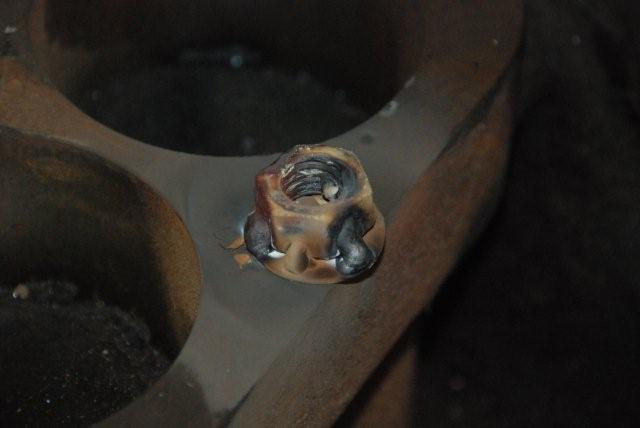

After welding the washer to the stump, weld a nut to the washer.

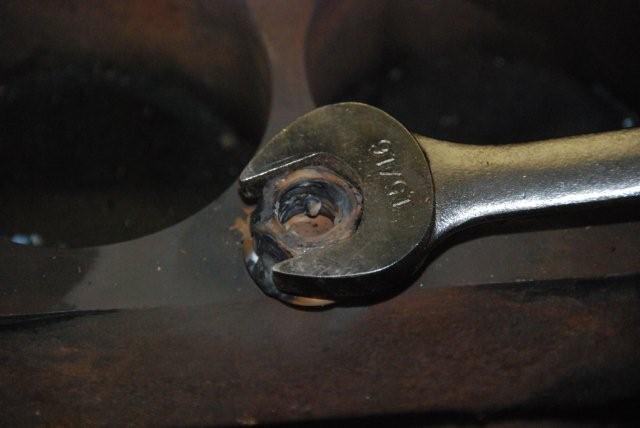

Now you have something to grab onto.  I turned this one while everything was still hot.  I don't think letting it cool off would have had any negative effect on the results.

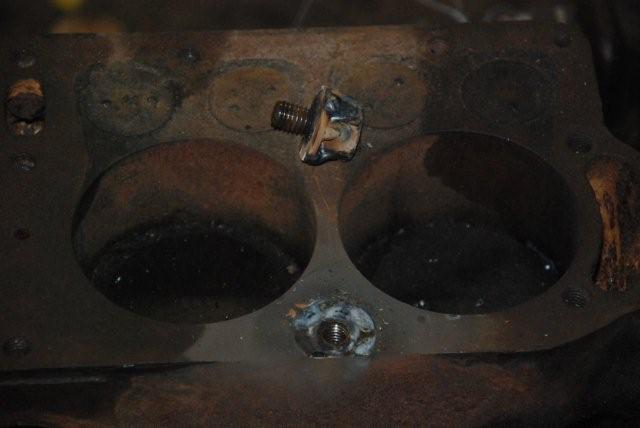

Now, why does this work?  Your heating the stud.  Metal shrinks when it cools.  So - while you were looking for the nut, lining it up, and getting your welding helmet back on - the stud cooled, shrank a tiny bit, and the rust/metal bond broke.  You can see in this last photo the color change on the stud, which shows just how far in that heat went.

I will confess here that this one was particularly stubborn.  What you don't see is the first try I made, where the nut and washer snapped off clean and I had to start over.  If you have the same problem, keep at it and you will win eventually.
